E-LINE KX-III Busway (400A – 6000A)

The KX-III Busway system

• The most versatile product in the E-Line Busway series.
• Designed, with the latest innovative technologies such as special epoxy coating and mono-block joint to have ratings from 400A to 6000A.
• The customer has the option to use copper or aluminum conductors in any configuration of the KX-III Busway.
• Used in a variety of vertical and horizontal electrical distributive applications and typically used in the transmission of energy in facilities with high power applications.


Feeder or Plug-in

• The feeder busway provides power transmission where tap off boxes are not required.
• The plug-in type can have up to 10 windows per 10-foot section for attaching tap off boxes.

Applications include: Industrial, Commercial, EV Charging, Automotive, Exhibition areas, High-rises, Hospitals, Data Centers

Features:

• Modular structure
• High electrical and mechanical strength
• The compact structure offers many benefits in the installation.

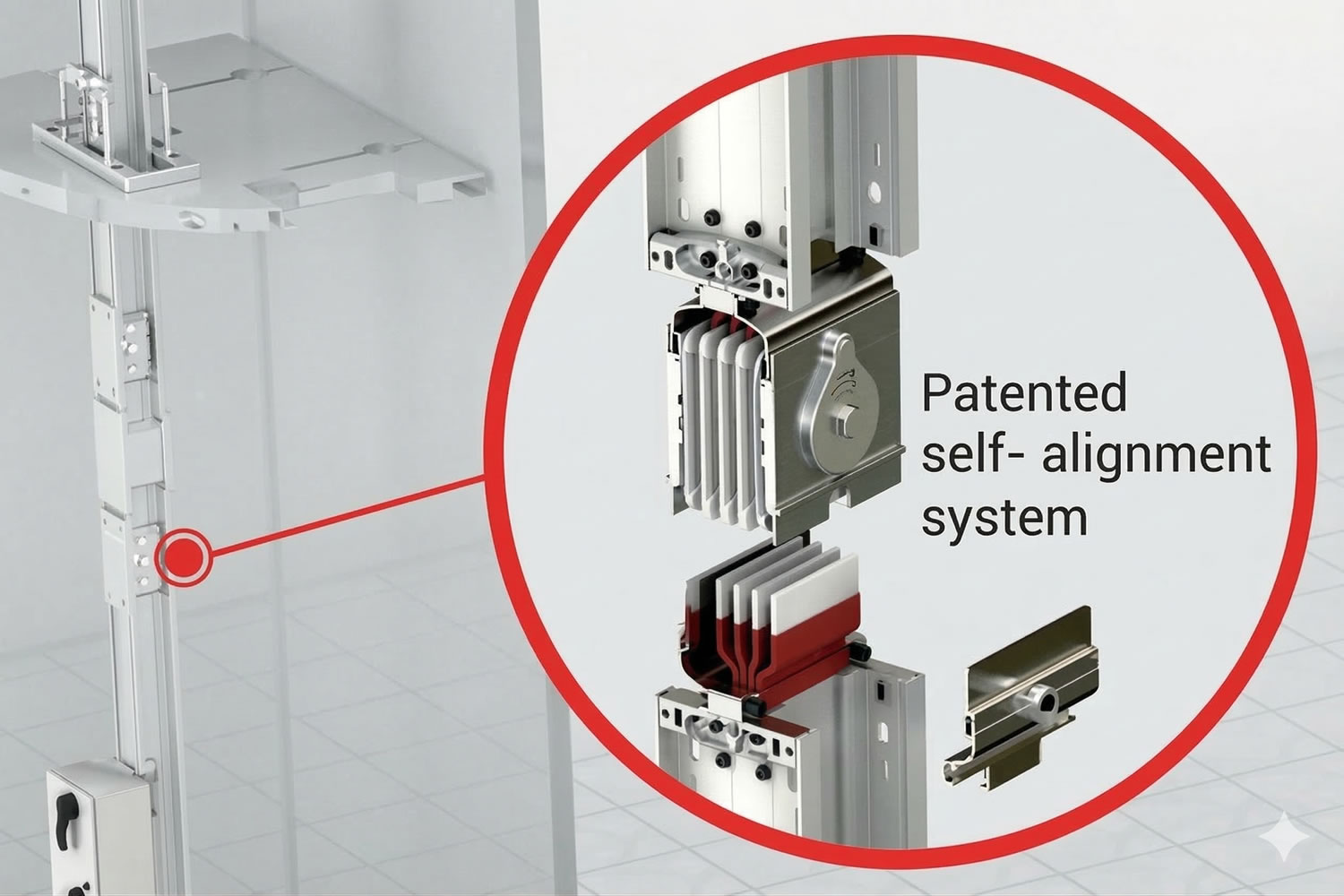

• Fast, easy and reliable installation with single bolt joint construction.
• Output units allow a significant saving about panel and system cost.
• Special design for minimal voltage drop
• Tin plated aluminum or copper conductors
• IP55 protection degree
• Aluminum housing, epoxy insulation, fire resistance as per IEC 60331

Advantages of E-Line KX Compact Busbar:

• High short circuit resistance due to compact construction
• Less voltage drop in comparison to cable systems
• Special alloy metal enclosure provides higher mechanical strength and causes less electromagnetic interference.
• Better cooling capability
• High resistance to fire
• Seismic resistance
• Protection Degree (IP55 standard and IP67 optional)
• Requires less space in comparison to cable systems
